Features and Benefit

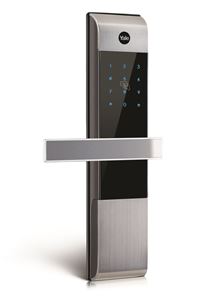

Yale YDM3109 has two access solutions, PIN code or proximity card key at your convenience.
To prevent the password from being exposed due to residual fingerprints after opening a door, a new technology has been adopted to complete the door opening process by touching the keypad with a palm after entering the password.
Operation status notification
Whenever any operation is made, the keypad informs you what is happened through different alignment of the numbers.
Mechanical key override
For emergency, it can also be unlocked with a mechanical key.
Missing card key invalidation
If you lose your proximity card key, it has no validation once you re-register rest of your keys.
Yale Digital Door Lock series automatically locks a door after checking it is properly closed. (Manual operation is also available)
Anti-panic egress with Safe Handle
For convenience and in case of emergency, the door is automatically unlocked whenever the inner lever handle is used. The safe handle will protect from any break-in attempts.
Alarm (Break / Damage)
80dB alarm goes off if anyone attempts to damage the lock or force the door open, or the lock detects over 60°C.
Low battery and emergency power
It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.
Remote control (Optional)
Remote control type is also available. Wireless Floating ID technology is adopted and works up to 50m.
Product Specifications :
||: Mortise lock
|Type Proximity Cards
||: 4 (Up to 40 cards)
||: 6 - 12 digits
||: suitable for 40-80mm steel and wooden door
|Front body dimension
||: 27 (D) X 68.6 (W) X 306.6 (H) mm
|Back body dimension
||: 37 (D) x 72.8 (W) x 306.6 (H) mm
