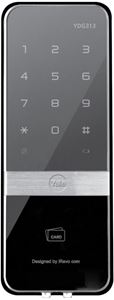

YDG 313

To get you the peace of mind, you need to secure yourself, your home and your personal belongings. Yale Digital Door Locks take care of this so that you can enjoy your life without worries. In these products we have combined our long experience in making secure and reliable locks with the latest technology for convenience and safety.

Product Details

Features and Benefit

Various Accesses
Yale YDG 313 has two access solutions, RF card or touch key pad for your convenience.

Magic Mirror
A Magic Mirror function is applied, which the keypad number appears on the mirror as soon as a user touches the product. The user can check the rear through the Magic Mirror, so that security can be enhanced.

Safe Thumb-Turn
Only if a user pushes the two safe button simultaneously affixed to the thumb-turn knob, the user can turn the thrum-turn knob.

Clip Type Bracket (Can be installed on Glass Doors of 9-13mm thickness)
The installation convenience is improved by the clip type bracket with a very strong double-side tape.

Modern and Thin Design
It is the solid and thin design using digital keypad on solid base.

High Temperature Alarm
When there’s fire, it detects the temperature of the inside. It not only goes off an alarm but also releases the lock status automatically.

Fake PIN Code
To prevent the PIN code from being exposed, it allows you to enter Fake numbers before or after entering your PIN Code.

Remove Control (Optional)
Remove control type is also available. Wireless floating ID technology is adopted and works up 50 m.


Product Specifications :

Type : Rim Lock
Card : Max. 20
PIN code : 4 - 12 digits
Color : Mirror Finish
Front Dimension : 13(D) x 66(W) x 179(H) mm
Back Dimension : 36(D) x 72(W) x 185(H) mm
Door Thickness : suitable for  9-13mm frameless glass door
